Synology DS920+

Synology NAS

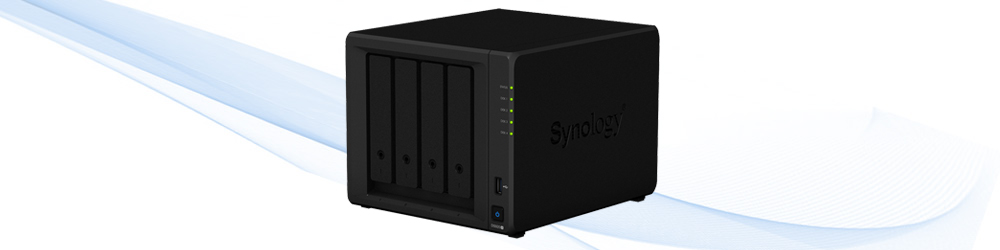

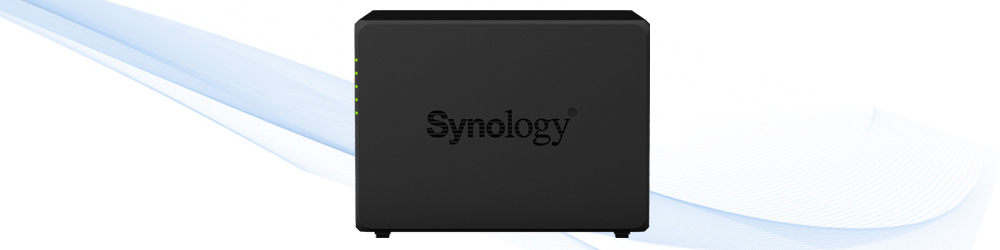

DiskStation DS920+

Synology DS920+ is an ideal network-attached storage solution to streamline data management and productivity. Two built-in M.2 SSD slots and Synology SSD Cache technology allow you to boost system I/O and application performance. Scalable storage design lets you start small and expand storage capacity with Synology DX517 as your data grows.

Synology NAS

Features of Synology DS920+

  • Scalable NAS with SSD cache acceleration capability
  • Optimize performance and capacity
  • Accelerate demanding applications
  • Access and sync your files seamlessly
  • Real-time collaboration on your private cloud
  • Engineered for reliability, backed by Synology
Synology NAS

Specifications of Synology DS920+

Hardware Specifications

CPU
CPU Model Intel Celeron J4125
CPU Quantity 1
CPU Architecture 64-bit
CPU Frequency 4-core 2.0 (base) / 2.7 (burst) GHz
Hardware Encryption Engine (AES-NI)
Memory
System Memory 4 GB DDR4 non-ECC
Total Memory Slots 1
Maximum Memory Capacity 8 GB (4 GB + 4 GB)
Notes
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Storage
    Drive Bays 4
    Maximum Drive Bays with Expansion Unit 9 (DX517 x 1)
    M.2 Drive Slots 2 (NVMe)
    Compatible Drive Type*
  • 3.5" SATA HDD
  • 2.5" SATA HDD
  • 2.5" SATA SSD
  • M.2 2280 NVMe SSD
  • Maximum Single Volume Size* 108 TB
    Hot Swappable Drive
    Notes
  • "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
  • Each internal volume (may consist of multiple drives) is expandable up to 108TB.
  • External Ports
    RJ-45 1GbE LAN Port 2 (with Link Aggregation / Failover support)
    USB 3.2 Gen 1 Port* 2
    eSATA Port 1
    Notes The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
    File System
    Internal Drives
  • Btrfs
  • EXT4
  • External Drives
  • Btrfs
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT
  • Appearance
    Size (Height x Width x Depth) 166 mm x 199 mm x 223 mm
    Weight 2.24 kg
    Others
    System Fan 92 mm x 92 mm x 2 pcs
    Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
  • Brightness adjustable front LED indicators
    Power Recovery
    Noise Level* 19.8 dB(A)
    Scheduled Power On/Off
    Wake on LAN/WAN
    Power Supply Unit / Adapter 100W
    AC Input Power Voltage 100V to 240V AC
    Power Frequency 50/60 Hz, Single Phase
    Power Consumption*
  • 32.17 W (Access)
  • 9.69 W (HDD Hibernation)
  • British Thermal Unit
  • 109.84 BTU/hr (Access)
  • 33.09 BTU/hr (HDD Hibernation)
  • Notes
  • Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
  • Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
  • Temperature
    Operating Temperature 0°C to 40°C (32°F to 104°F)
    Storage Temperature -20°C to 60°C (-5°F to 140°F)
    Relative Humidity 5% to 95% RH
    Certification
  • FCC
  • CE
  • BSMI
  • EAC
  • CCC
  • KC
  • VCCI
  • RCM
  • Warranty 3-year hardware warranty, extendable to 5-year coverage - EW201
    Notes The warranty period starts from the purchase date as stated on your purchase receipt.
    Environment RoHS Compliant
    Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Adapter X 1
  • AC Power Cord X 1
  • RJ-45 LAN Cable X 2
  • Quick Installation Guide X 1
  • Optional Accessories
  • DDR4 non-ECC SODIMM: D4NESO-2666-4G
  • Expansion Units: DX517
  • 3.5" SATA HDD: HAT5300
  • 2.5" SATA SSD: SAT5200
  • M.2 2280 NVMe SSD: SNV3400
  • VisualStation: VS960HD/VS360HD
  • Surveillance Device License Pack
  • Notes All memory modules will operate at the maximum frequency specified by the CPU manufacturer.

    For additional information, download the Synology DS920+ datasheet.
